Introduction

Thin Film Transistor Liquid Crystal Displays (TFT LCDs) represent a cornerstone in modern display technology, found in a myriad of devices from smartphones and laptops to televisions and digital signage. Known for delivering sharp, vibrant visuals, TFT LCDs enhance our interaction with the digital world. This article dives into the essence of TFT LCD technology, explaining its workings, components, and the myriad applications it empowers.

What is a TFT LCD?

A TFT LCD, or Thin Film Transistor Liquid Crystal Display, utilizes a special arrangement of liquid crystals combined with a network of tiny switching devices known as transistors. These transistors are embedded within the display, allowing precise control over the image and color production at each pixel. The principal advantage of TFT technology is its capacity to provide superior clarity and resolution, making it ideal for high-definition displays. Furthermore, TFT LCDs are celebrated for their efficient power consumption, which is particularly beneficial for portable devices that operate on battery power.

How Do TFT LCDs Work?

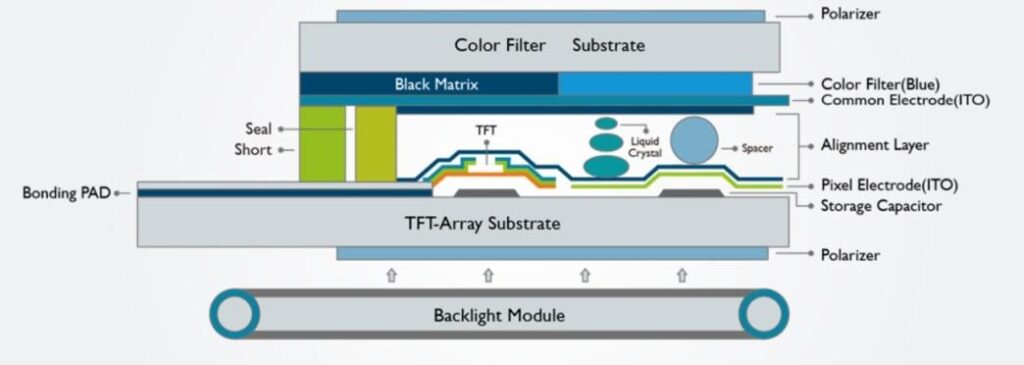

The architecture of a TFT LCD is sophisticated yet elegantly simple. It consists of two primary glass layers: one houses the liquid crystals and the other is etched with individual transistors. These transistors function as tiny gates that regulate the flow of electrical currents to each pixel. When activated, they realign the liquid crystals to modulate light passage through the display.

Central to the TFT LCD’s operation is the backlight, a light source placed behind the glass panels that illuminates the liquid crystals. As light passes through these aligned crystals, it is fine-tuned by color filters positioned within the LCD to deliver the visible spectrum needed for full-color display. The ability to control the light so precisely at each pixel means that TFT LCDs can produce images that are not only bright and colorful but also highly detailed.

Components of a TFT LCD

Creating a TFT LCD involves assembling several critical components:

• Glass Substrates: These are the foundational layers that hold the liquid crystals and transistors.
• Thin Film Transistors: These are microscopic switches that control the activity of individual pixels.
• Liquid Crystals: Sandwiched between polarizing filters, these crystals adjust to alter the light’s direction and intensity.
• Color Filters: Integrated within the LCD, these filters divide light into red, green, and blue components to produce a full spectrum of colors.
• Polarizers: These filters manage the direction and quality of light as it enters and exits the display.
• Backlight Unit: This component illuminates the display from behind, essential for ensuring that the screen is visible under different lighting conditions.

The manufacturing process is intricate, demanding precision engineering to layer these components accurately, ensuring high-quality output that meets consumer expectations.

Applications of TFT LCDs

TFT LCDs are versatile and have been adopted across various sectors:

• Consumer Electronics: They are ubiquitous in mobile phones, tablets, and personal computers.
• Television and Monitors: Preferred for producing clear, high-resolution images on large screens.
• Automotive Displays: Employed in car dashboards and GPS systems for their clarity and responsiveness.
• Medical Devices: Critical for devices where precise image rendition is necessary for diagnostics and monitoring.

• Industrial Automation: TFT LCDs are pivotal in industrial settings, where they are used in control panels and monitoring systems to manage and display operational data accurately. This allows for enhanced process control and monitoring in manufacturing and other automated environments.

The technology’s flexibility and quality continue to drive its expansion into new applications, paving the way for future innovations.

Conclusion

The significance of TFT LCD technology extends beyond just picture quality and energy efficiency. It influences how we interact with our devices and how effectively we can work and play in an increasingly digital world. By understanding the mechanisms behind TFT LCDs, consumers and professionals alike can better appreciate and leverage this technology in their daily lives.
